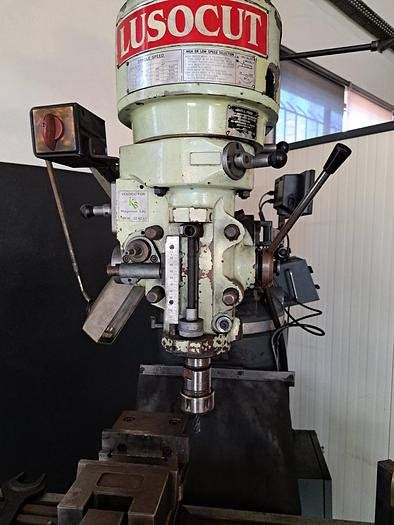

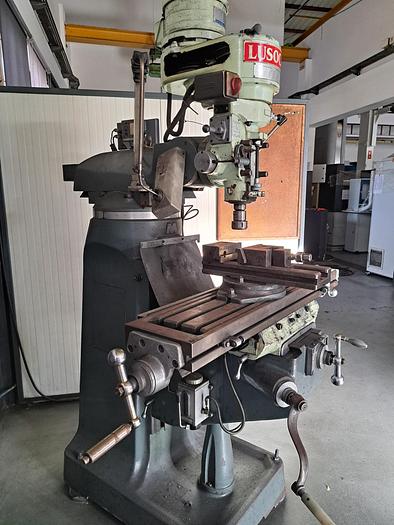

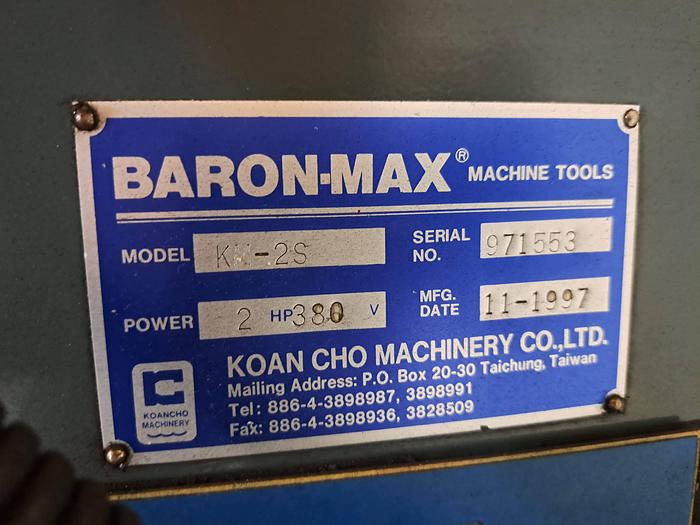

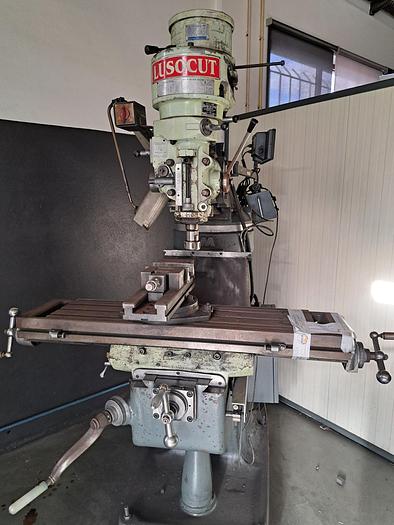

Fresadora universal LUSOCUT/BARON-MAX

Fresadora universal LUSOCUT.

Working surface of table 230 x 1065 mm

X-Y-Z Travel (manual) 760 x 305 x 410 mm

X-Y-Z Travel (power feed) 680 x 305 x 410 mm

Over ram Travel 410 mm

T-slots (width x number) 16 mm x 3 T

Number of Spindle Speeds Variable speed

Range of spindle speed 4200 rpm/60Hz, 3600 rpm/50Hz,

Spindle Quill diameter 86 mm

Spindle Quill travel 127 mm

Down feeds of Spindle (per/rev./mm) 0.04, 0.08, 0.15 mm/rev

Taper of spindle nose R-8 or ISO 30 (ISO 40 Option)

Spindle motor 3HP

Motor 3Ph, 230/380/460V Pre-wired 230V

Over swivel on turrt 360°

Head tilt; right-to-left (each way) 90°(R & L)

Head tilt up-and-down (each way) +/- 45°

Maxi. Weight of Workpiece (kgs.) 300 kg

Weight (approx) 960kg
